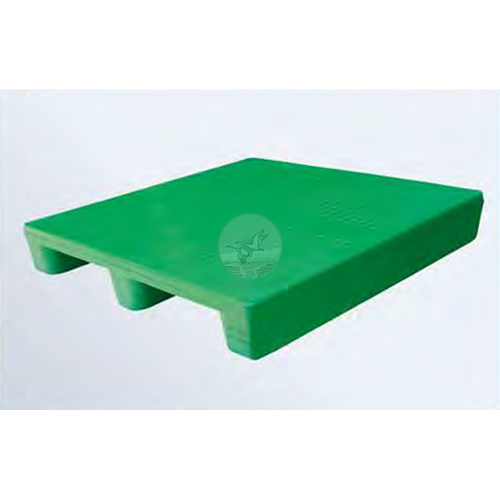

H-Series: 2-Way Entry Non-Reversible Roto Pallets
The H Series roto molded pallet features a durable 2-way entry, 3 longitudinal legs, and optional plain or antiskid top surfaces.
Engineered for horizontal racking and handling from the width side via forklift, stacker, or hand pallet truck, it's ideal for rugged industrial use with customizable color options
Pallet Specifications
| Pallet Type | 2 Way Entry Non-Reversible |
| Leg Type | 3 longitudinal Legs |
| Horizontal Racking | Suitable |
| Fork Lift Handling | Suitable (from Width Side) |
| Stacker | Suitable (from Width Side) |
| Hand Pallet Truck | Suitable (from Width Side) |
| Pallet Top | Plain/Antiskid/Customised* |
| Color | Available in Blue/Grey/White/Black & many more* |
Models Available
| S.No | Model Number | Dimensions (L*W*H) (in mm) | Fork Entry Side | Fort Entry (W) | Bottom Clearance (H) | Static Load (in Kg) Up to | Dynamic Load (in Kg) Up to | Rack Load (in Kg) Up to |
|---|---|---|---|---|---|---|---|---|
| 1 | SARK-H2-1213 | 1200*1300*150 | 1300 | 1020 | 105 | 6000 | 1500 | 1500 |
| 2 | SARK-H2-1212 | 1200*1200*150 | 1200 | 920 | 105 | 6000 | 1500 | 1500 |
| 3 | SARK-H2-1210 | 1200*100*150 | 1000 | 760 | 105 | 6000 | 1500 | 1500 |
| 4 | SARK-H2-1111 | 1100*110*150 | 1100 | 840 | 105 | 6000 | 1500 | 1500 |
| 5 | SARK-H2-1208 | 1200*800*150 | 800 | 610 | 105 | 6000 | 1500 | 1500 |
| 6 | SARK-H2-1012 | 1000*1200*150 | 1200 | 920 | 105 | 6000 | 1500 | 1500 |
| 7 | SARK-H2-1010 | 1000*1000*150 | 1000 | 730 | 105 | 6000 | 1500 | 1500 |
| 8 | SARK-H2-1008 | 1000*800*150 | 800 | 610 | 105 | 6000 | 1500 | 1500 |
| 9 | SARK-H2-0909 | 900*900*150 | 900 | 700 | 105 | 6000 | 1500 | 1500 |
| 10 | SARK-H2-0808 | 800*800*150 | 800 | 610 | 105 | 6000 | 1500 | 1500 |
